General Information

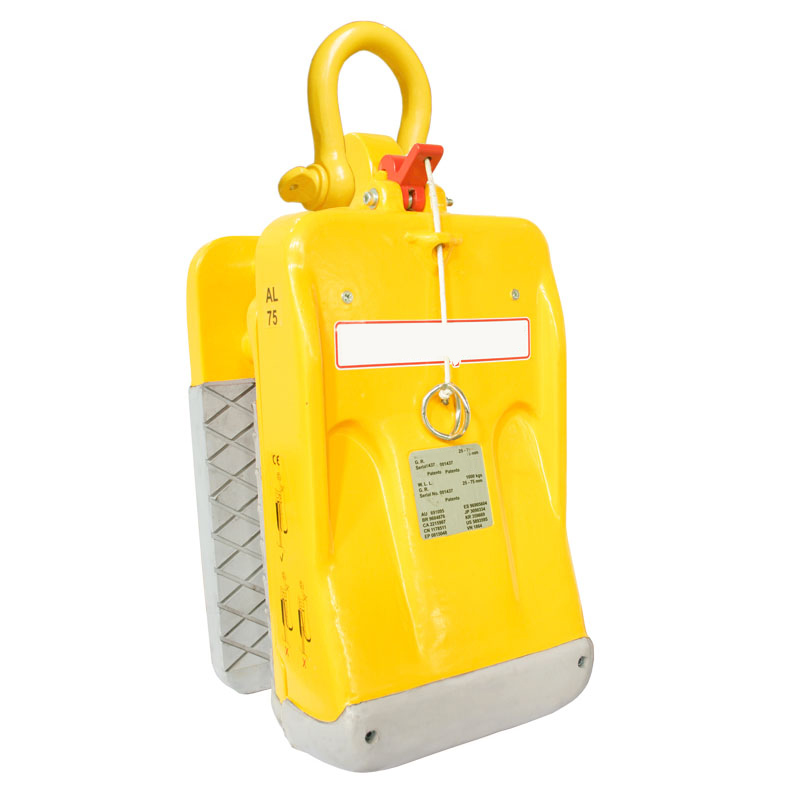

The Lifter is an accessory for lifting and moving slab-form loads. The Lifters incorporate a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and lowering of slabs a one-man operation.
Features
Size: Being of a compact construction, the Lifter 75 allow for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
Secure: The clamps grip marble and granite slabs firmly. The Lifter 75 has a force multiplying factor of approximately 2.5 to 1.
Specifications
| Unit
Section |
Metric (mm-kg)
|
Imperial (inch-lbs)
|
| Grip Range | 30 – 75 | 0.4 – 2 |
| W.L.L | 1200 | 2646 |
| Net Weight | 25 | 55.1 |
| Gross Weight | 25.8 | 56.9 |
| Package Dimension | 420x220x250 | 16.5×8.7×9.8 |
