The QDM 150W has been replaced by the upgraded AGP DMC 6P.

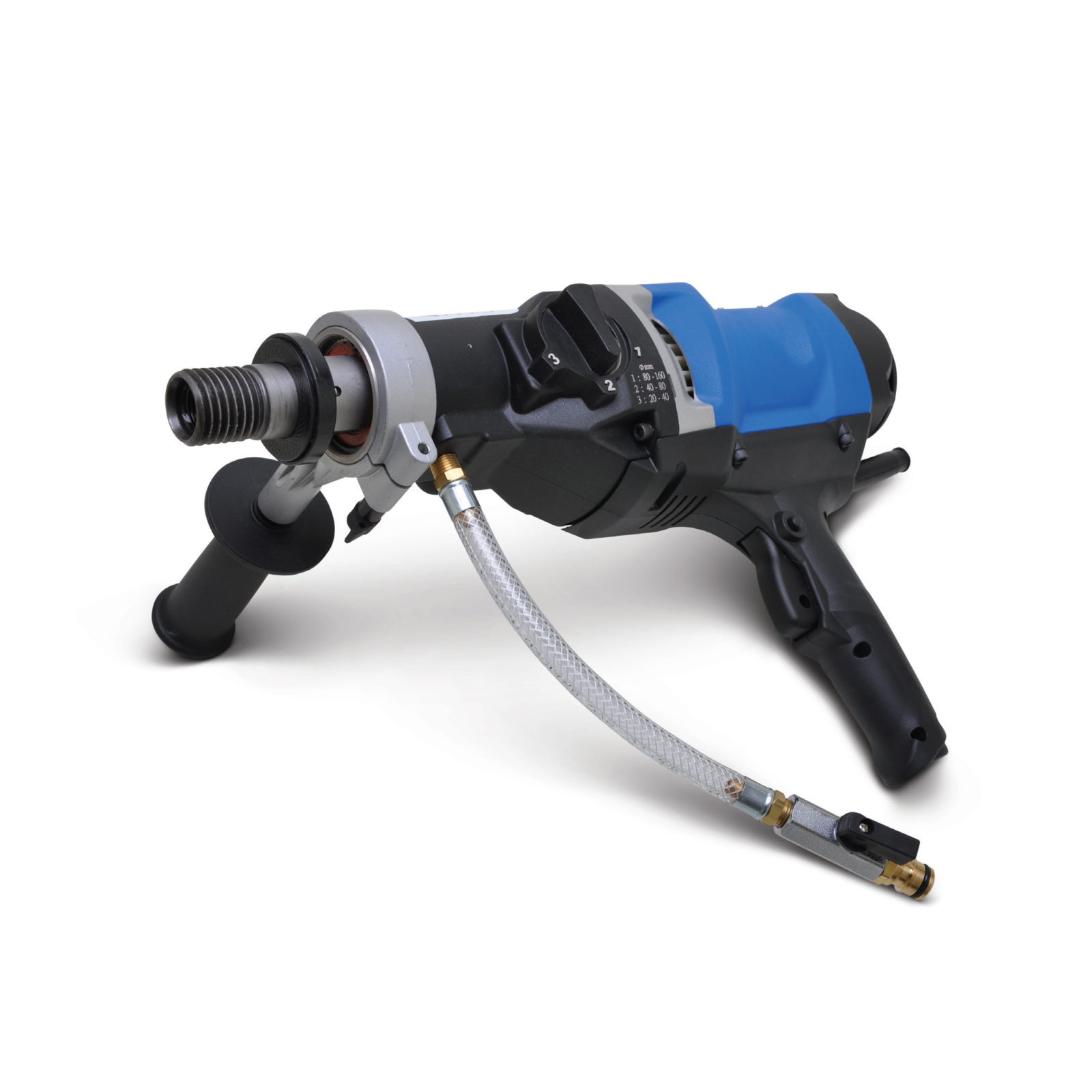

The QDM-150W ELITE is a powerful, hand held or rig-mounted diamond coredrill motor, made for more. Built with more power, more speed, more reliability, more innovation and more value in mind for the user, this core drill has a 2Kw motor, all metal construction allowing for increased cooling and durability, and an innovative IPM System which manages the volume of power entering the motor depending on the circumstances in hand.
SPECIFICATION DETAILS

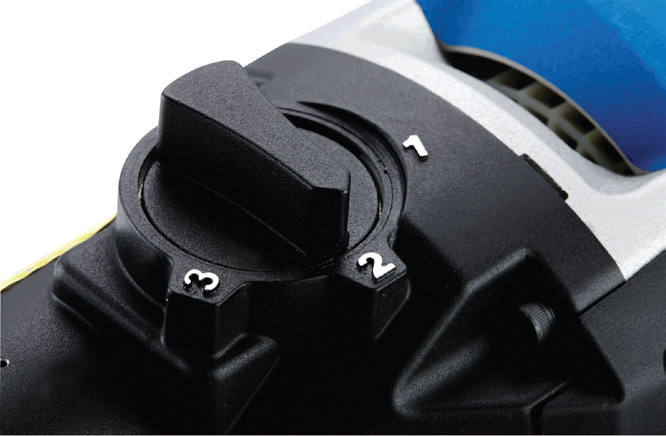

ERGONOMIC HANDLE OIL BATH 3-SPEED GEARBOX
2 levels built into the motor ensures easy levelling for the user
Intelligent Power Management (IPM)
System built into the motor manages the volume of power entering the motor depending on the circumstance.
All metal construction allows for improved cooling & increased durability

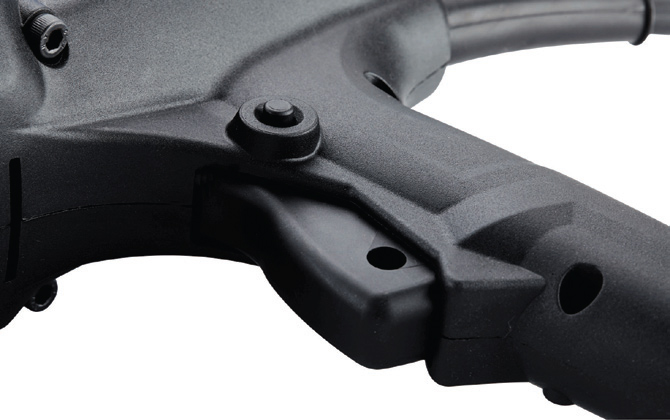

Ergonomic Pistol handle and extra.
Front handle gives the user extra.
Support and control over the motor.
TECHNICAL SPECIFICATION
Product Description: Wet hand held or rig-mounted core drill motor
Drilling Ø 160mm
Input Power 110-120V:2000W
Dimensions 437mm x 115mm x 289mm
No-load speeds 930/1520/4270 min-1
Weight 6.4Kg
Voltage 110-120V ~ 50-60Hz
Decibel Level 97 DbA
Tool Fixture ½” BSP F & 1 ¼” UNC M
Vibration level <1.5m/s²

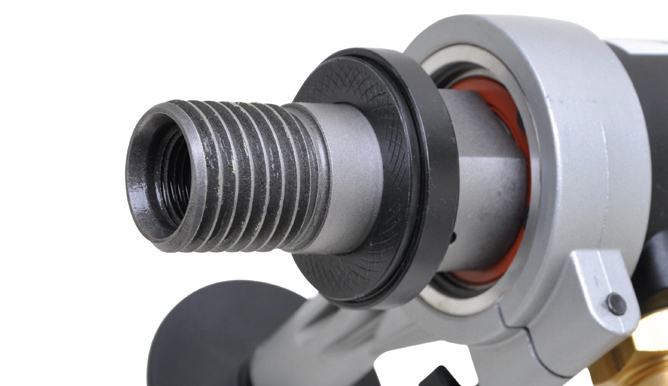

2 IN 1 SPINDLE WITH INTEGRATED
ANTI-JAM RING
