General

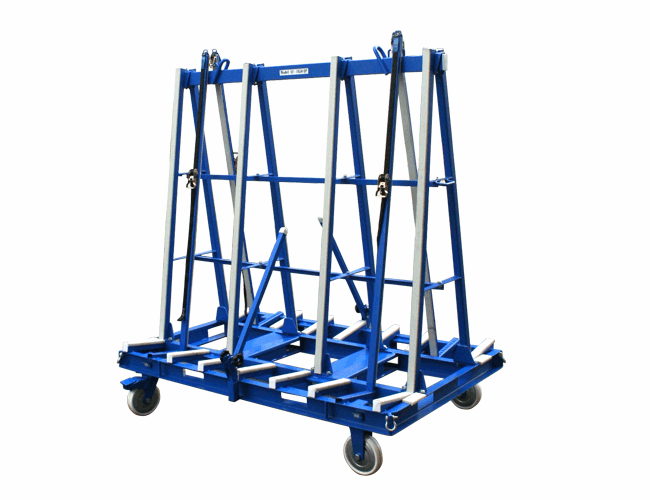

Ideal for transporting and storing material within the factory or transporting material to building sites. Frame can be loaded onto truck by forklift or crane.
Features
Sturdy structure, designed so as to eliminate any risk of slab tipping over.
Slabs are placed on special rubber profiles and secured with 4 adjustable locking bars.
Four locking bars per frame mount in slotted holes on the bottom.
Frame features 2 hooking points to be picked up by an overhead crane.
Built-in brackets on all underneath sides for forklift transport.
Double brake pin release wheels.
Powder coat paint finish.
Specifications
W.L.L:
– Eyelet:
2500kg
5511.557lbs
– Stationary:
4000kg
8818.49lbs
Width of slab storage base area on each side: 290mm
Package Dimensions: L.1850 x W.1300 x H.320mm.
